Semi-continuous vacuum furnace for low-pressure carburizing

Modern case hardening and quenching for flexible mass production

Author
Maciej Korecki

Keywords
Low pressure carburizing, LPC, high pressure gas quenching, HPGQ, triple-chamber vacuum furnace, semi-continuous processing

Abstract

Download CMe-T PDF

Modern industry and its development pose increasing challenges to heat treatment equipment. In addition to the obvious requirements such as safety, quality, economy, reliability and efficiency, the factors such as availability, flexibility, energy efficiency, environmental and the surrounding carbon neutrality are becoming more and more important.

This article presents a semi-continuous vacuum furnace for low-pressure carburizing (LPC) and high-pressure gas quenching (HPGQ) that fits very well with current industry trends and expectations. The device has advantages over traditional technologies in virtually every aspect of standard and development requirements, which will be demonstrated through an industrial implementation of the device.

Introduction
The evolution in heat treatment from atmospheric to vacuum technologies is underway. This process has been going on for at least 60 years, when vacuum furnaces first appeared in the most demanding industries (space, aerospace), after which they began to conquer other industrial branches, and are now widely implemented in both mass production and service plants. Although vacuum installations are in the minority compared to atmospheric ones, the replacement process is irreversible and will take several decades to come.

The driving force behind these changes are the increasing requirements in relation to heat treatment resulting from the directions of industrial development and production systems, as well as environmental protection, where the advantages of vacuum technologies are undeniable.

Traditional atmospheric technology
Case hardening by carburizing is one of the most widely used heat treatment technologies. It consists in carburizing (introducing carbon to the surface) followed by quenching of the carburized layer.
Traditionally, the work is carburized in a mixture of flammable (explosive) and poisonous gases (CO, H2), and quenched in oil in an atmosphere furnace, using methods developed in the 1960s. These methods have exhausted their development potential and do not meet the requirements of modern industry. Safety is an issue with this method due to the use of flammable (and poisonous) gases and flammable oil, as well as open flame, which in the absence of complete separation from the air can lead to fire, or poisoning.

Atmosphere furnaces also require constant supervision and are not flexible in production, wasting time on preparing and finishing the job. In addition, they adversely affect the surroundings and the environment by releasing significant amounts of heat, polluting the surroundings with quenching oil and its vapors. They require the use of washers and cleaning chemicals, emit annually tens or even hundreds of tons of CO2 (greenhouse gas, the main culprit of global warming and dynamic climate change) coming from the carburizing atmosphere, and for these reasons they need to be installed in dedicated so-called dirty halls separated from other production departments.

The resulting requirement to limit the temperature of the processes to 920-930oC is also not without importance, as it blocks the possibility of accelerating carburization and increasing production efficiency (due to the use of metal alloys in the construction, the service life of which drops dramatically at higher temperatures) and the formation of unfavorable intergranular oxidation (IGO), which is a characteristic feature of the atmospheric carburizing method.

Quenching in oil is effective, but it is not a controllable, repeatable, and ecological process. Due to the multiphase nature of oil quenching (steam, bubble, and convection phase) and the associated extremely different cooling rates, it is characterized by large and unpredictable deformations within a single part and the entire load. Furthermore, there is no practical method to influence and control this process.

All of the above and many other disadvantages and weaknesses of the atmospheric technology are eliminated by the vacuum heat treatment process based on vacuum carburizing and high-pressure gas quenching.

Modern vacuum technology using low pressure carburizing (LPC) and high-pressure gas quenching (HPGQ)

Vacuum carburizing appeared as early as the 1970s, but it could not break through for a long time due to the inability to control and predict the results of the process, and heavy contamination of the furnaces with reaction products. The breakthrough came in the 1990s when acetylene began to be used as a carbon-bearing gas and computers were employed to control and simulate the process. Since the beginning of the 21st century, there has been a rapid development of the LPC technology and an increase in its industrial demand, which continues today with an upturn.

Vacuum carburizing occurs with the aid of hydrocarbons (usually acetylene), which catalytically decompose at the surface, providing carbon that diffuses into the material. The process is carried out under negative pressure (hundreds of times less than atmospheric pressure) and is very precise, efficient, and uniform due to the very high velocity and penetration capacity of the gas molecules, allowing the carburizing of large and densely packed loads and hard-to-reach surfaces such as holes.

In addition, the use of non-oxygen-containing hydrocarbon atoms eliminates the qualitative problem of intergranular oxidation (IGO). The process is completely safe, there is no flammable or poisonous atmosphere in the furnace and no open flame, and the furnace can work unattended and is fully available and flexible, i.e., it can be turned on and off on demand, which does not require any preparation. Similarly, changing the carburizing parameters takes place without any waste of time.

Due to the design of the vacuum furnace and the use of materials with high resistance to temperature (graphite) – the only limitation for the temperature of the carburizing process is the steel from which the parts are made – it is possible to carburize at higher temperatures than traditional methods, which results in even several times shorter carburizing time and a multiple increase in the efficiency of the vacuum furnace compared to an atmosphere furnace.

Neutral gas cooling came with vacuum furnaces. Initially, a cooling gas (nitrogen or argon) at near ambient pressure and natural convection was used, while subsequent solutions introduced fan-forced gas flow in a closed circuit. The cooling efficiency under such conditions was hundreds of times lower compared to that of oil and allowed only high-alloy steels and parts with very limited cross-sections to be hardened. Over the following decades, the development of HPGQ was focused on improving cooling efficiency by increasing pressure and velocity and using different types of gas and their mixtures. Current systems have cooling efficiencies on a par with oil-based systems and enable the same types of steel and parts to be hardened, with the advantage that deformation can be greatly reduced and reproducible, and the process is completely controllable (through pressure and gas velocity) allowing any cooling curve to be executed.

The ecological advantages of vacuum technologies are indisputable. Due to their design and processes, vacuum furnaces do not interfere with the immediate surroundings and are environmentally friendly, so they can be installed in clean halls, directly in the production chain (in-line). They emit negligible amounts of heat and post-process gases which are not poisonous and contain no CO 2 at all. Gas quenching eliminates harmful quenching oil and the associated risk of fire and contamination of the immediate environment, as well as the need for equipment and chemicals for its removal and neutralization. Nitrogen used for cooling is obtained from the air and returned to it in a clean state, creating an ideal environmentally friendly solution.

The presented advantages of vacuum technologies influence its dynamic development and increase the demand of modern industry, and the gradual replacement of atmospheric technologies.
Vacuum furnaces are available in virtually any configuration: horizontal, vertical, single, double, or multi-chambered, tailored to the process and production requirements. In light of recent global changes, requirements and industrial trends, special attention should be paid to disposable, flexible and rapidly variable production and process systems, as well as independent and autonomous systems, which include a three-chamber vacuum furnace for semi- continuous heat treatment, equipped with LPC and HPGQ.

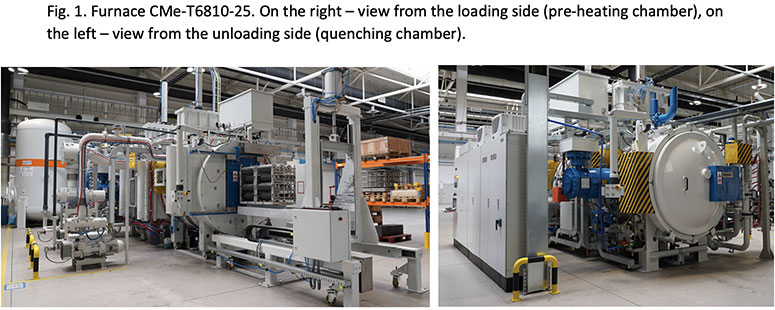

Three-chamber vacuum furnace -- CaseMaster Evolution type CMe-T6810-25
This system is a compact, versatile, and flexible device designed for vacuum heat treatment processes for in-house and commercial plants, dedicated to fast-changing and demanding conditions in large-scale and individual production (Fig. 1.).



It enables the implementation of case hardening by LPC and HPGQ processes and quenching of typical types of oil and gas hardened steels and allows for annealing and brazing. It is characterized by the following data:

—	working space 610x750x1000 mm (WxHxL)
—	load capacity	1000 kg gross
—	temperature	1250oC
—	vacuum	range 10-2 mbar
—	cooling pressure	25 bar abs
—	LPC	acetylene gas
—	installation area	8x7m

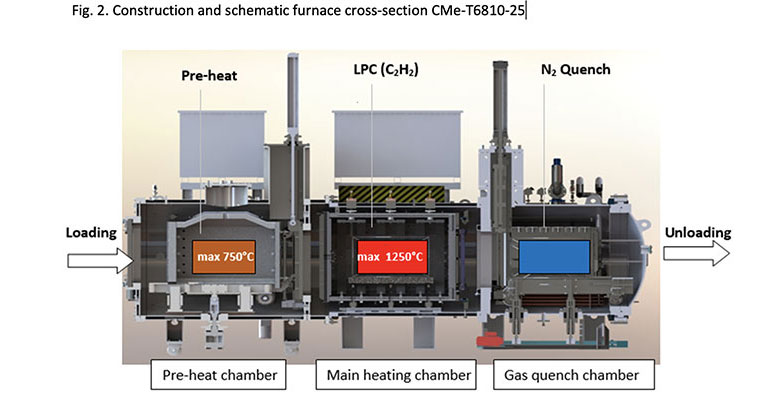

The furnace is built with three thermally and pressure-separated chambers (Fig. 2.), and operates in a pass-through mode, loaded on one side and unloaded on the other, simultaneously processing 3 loads (hence its high efficiency). The load is put into the pre-heating chamber, where it is pre-heated to the temperature of 750^oC, depending on the requirements: in air (pre-oxidation), nitrogen or vacuum atmosphere. It is then transferred to the main heating chamber, where it reaches process temperature and where the process is carried out (e.g.: LPC). In the next step, the charge is transported to the quenching chamber, where it is quenched in nitrogen under high pressure. All operations are automatic and synchronized without the need for operator intervention or supervision.

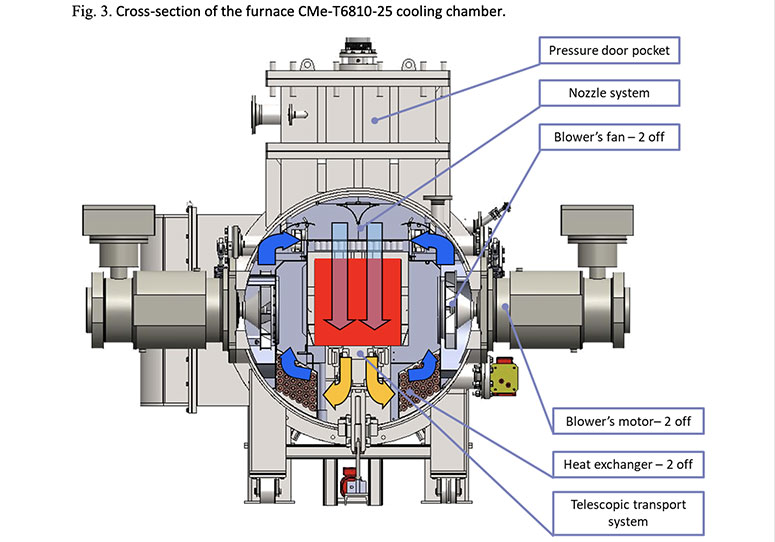

Particularly noteworthy is the gas cooling chamber, which in nitrogen (rather than helium) achieves cooling efficiencies comparable to oil (heat transfer coefficient >> 1000 W/m2K), thanks to the use of 25 bar abs pressure and hurricane gas velocities in a highly efficient closed loop system. The cooling system is based on two side-mounted fans with a capacity of 220 kW each, forcing with nozzles an intensive cooling nitrogen flow from above onto the load, then through the heat exchanger (gas-water), where the nitrogen is cooled and further sucked in by the fan (Fig. 3).



The cooling process is controllable, repeatable, and programmable by gas pressure, fan speed and time. An intense and even cooling is achieved. The result is the achievement of appropriate mechanical properties of parts with minimal hardening deformations, without the use of environmentally unfriendly oil or very expensive helium.

An integral part of the furnace system is the SimVaC carburizing process simulator, which enables the design of furnace recipes without conducting proof tests.

Distinctive features of the CMe-T6810-25 furnace
The advantages and superiority of the furnace in relation to atmospheric technologies and other vacuum solutions can be demonstrated in a number of usability and functional aspects, the most important of which are the following:

Safety:
  — Safe, no flammable and poisonous atmosphere
  — No open fire
Production and installation:
  — Intended for high volume production (2-3 times higher output when compared to single- and double chamber furnaces)
  — Effective and efficient LPC (even 5 times faster than traditional carburizing)
  — Total process automation & integration
  — Clean room installation
  — Operator-free
  — Compact footprint
Quality:
  — High precision and repeatability of results
  — Uniform carburizing of densely pack loads and difficult shapes (holes)
  — No decarburization or oxidation
  — Elimination of IGO
  — Ideal protection and cleanliness of part surfaces
  — Accurate and precise LPC process simulator (SimVaC)
Quenching:
  — Powerful nitrogen quenching (neither oil nor helium is needed)
  — Reduction of distortion
  — Elimination of quenching oil and contamination
  — Elimination of washing and cleaning chemicals
Operational:
  — Flexible, on-demand operation
  — No conditioning time
  — No human involvement and impact
  — High lifespan of hot zone components - graphite
  — No moving components in the process chamber
Ecology:
  — Safe and environmentally friendly processes and equipment
  — No emission of harmful gases (CO, NOx, SOx)
  — No emission of climate-warming gas CO2

Based on the CMe-T6810-25 furnace performance, it is rational and reasonable to build heat treatment systems for high-efficiency and developmental production in a distributed system by multiplying and integrating further autonomous and independent units. Then the advantages over centralized atmospheric installations or vacuum modular systems for continuous production are as follows:

  — No risk of production total breakdown
  — Unlimited operational flexibility
  — Less initial investment cost
  — Unlimited multiplication
  — No downtime while expansion
  — Independent quenching chamber
  — Independent transportation
  — Independent control system

The characteristics, capabilities and functionalities of the CMe-T6810-25 furnace fit very well with the current and developmental expectations of modern industry and ecological requirements, which is confirmed by specific implementation cases.

Case study

The three-chamber CaseMaster Evolution CMe-T6810-25 vacuum furnace was installed and implemented for production at the commercial heat treatment plant at the Polish branch of the renowned Aalberts Surface Technologies Group in 2020.

The CMe furnace, together with the washer and tempering furnace, forms the core of the department's production, which is why the furnace is operated continuously (7/24). Last year, the furnace performed over 2000 processes and showed very high quality (100%) and reliability (> 99%) indicators. The very high efficiency of the furnace was also confirmed, which, with relatively low production costs, contributes to a very good economic result.

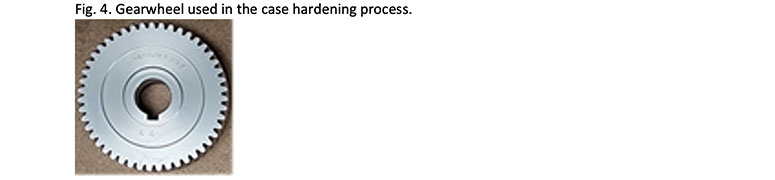

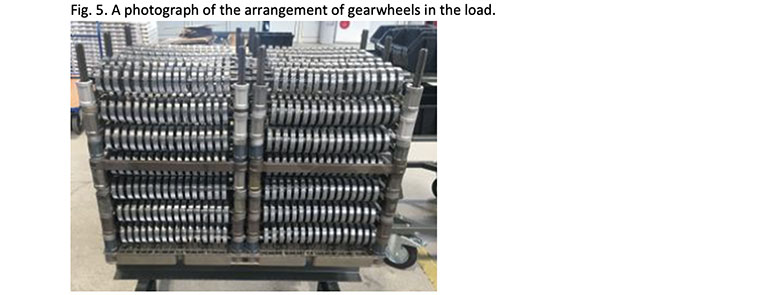

The case hardening process on gearwheels used in industrial gearboxes was taken as an example. The wheel had an outer diameter of about 80 mm and a mass of 0.52 kg (Fig. 4), and the load consisted of 1344 pieces densely packed in the working space (Fig. 5) with a total net weight of 700 kg (920 kg gross) and 25 m2 surface to be carburized. The aim of the process was to obtain an effective layer thickness from 0.4 – 0.6 mm with the criterion of 550 HV, surface hardness from 58 – 62 HRC (Rockwell Hardness C), core hardness at the gear tooth base above 300 HV10 and the correct structure with retained austenite below 15%.

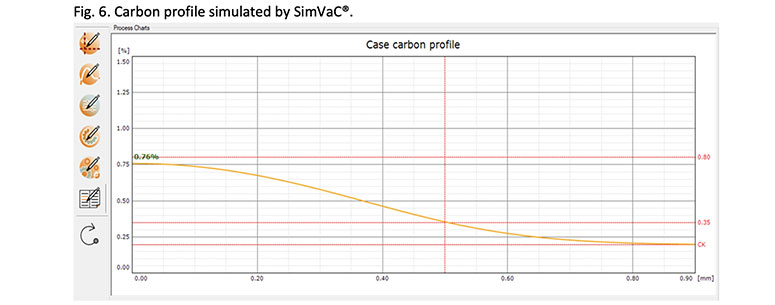

The LPC process was designed using the SimVaC® simulator at a temperature of 940^oC and a time of 45 min, with 3 stages of introducing carburizing gas (acetylene), obtaining the appropriate profile of carbon concentration in the carburized layer, with a content of 0.76% C on the surface (Fig. 6).

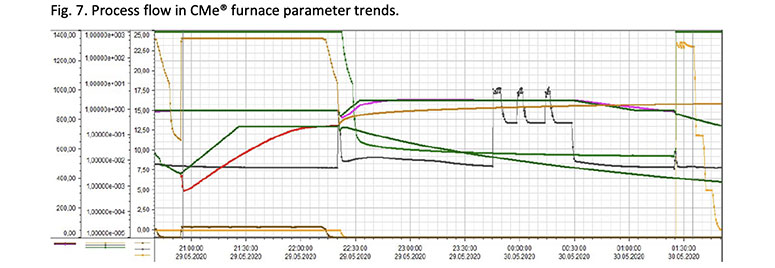

The process was carried out in the CMe-T6810-25 furnace and had the following course from the perspective of a single load (Fig. 7):

1. Loading into a pre-heating chamber, heating and temperature equalization in 750^oC (100 min in total).
2. Reloading to the main heating chamber, heating and temperature equalization in \ 940^oC, LPC, lowering and equalizing the temperature before quenching in 860^oC, reloading to the cooling chamber (total 180 min).
3. Gradual quenching at a pressure of 24, then 12 and 5 bar, discharge of the load from a quenching chamber (total of 25 min).

The load stayed the longest in the main heating chamber – for 180 minutes. This means that with the continuous operation of the furnace in this process, the cycle will be just 180 minutes, i.e., once every 3 hours the raw load will be loaded, and the processed load will be removed from the furnace.

In the next step, the parts underwent tempering at a temperature of 160^oC.

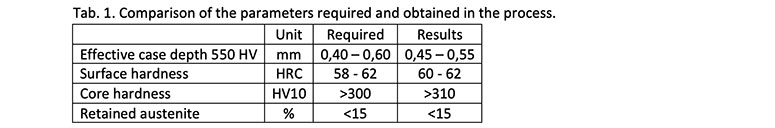

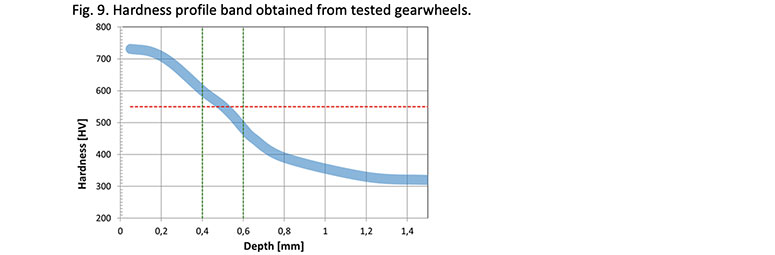

The result of the process was tested on 10 parts taken from the reference corners and from the inside of the load. The correct layer structure (Fig. 8) and hardness profile (Fig. 9) were achieved, and all the requirements of the technical specification were met (Tab. 1.).



During the process, the consumption of the costliest energy factors was monitored and calculated, and the results per one load are as follows:

  — Electricity - 550 kWh
  — Liquid nitrogen - 160 kg
  — Acetylene - 1.5 kg
  — CO2 emissions - 0 kg

Cooling water and compressed air consumption have not been included as they have a negligible impact on process costs.

Summary: efficiency and economy

As a result of the process, all technological requirements have been met, obtaining the following indicators of efficiency and consumption of energy factors calculated for the entire load and per unit net weight of the load (700 kg):

  — Capacity: 3h/load; 233 kg/h;1.5 thousand tons/year (6500 h)
  — Electricity: 550 kWh; 0.79 kWh/kg
  — Liquid nitrogen: 160 kg; 0,23 kg/kg
  — Acetylene: 1,5 kg; 2,1 g/kg
  — CO2 emissions : 0 kg; 0 kg/kg

On this basis, it is possible to estimate the total cost of energy factors in the amount of approximately EUR 100 per load or approximately EUR 0.14/kg of net load (assuming European unit costs of 2021). It is important that these costs are not burdened by CO2 emission penalties (as is the case with atmosphere furnaces).

To sum up the economic aspect, based on an example process, a CMe furnace capacity of 1,500 net tons of parts per year was achieved for 6500 hours of annual furnace operation, at a cost of energy factors of about 100 EUR per load, or 0.14 EUR per kg of parts. The economic calculation is very attractive and competitive, even in relation to atmosphere technology and furnaces, and the return on investment (ROI) is estimated at just a few years.

The example discussed here does not represent the full capabilities of the CMe-T6810-25 furnace, even the exemplary process can be optimized and shortened, thereby increasing the furnace's efficiency, and reducing costs. It is possible to carry out carburizing processes (LPC) or hardening alone in a 1.5 h cycle, which would double the capacity of the furnace and similarly reduce the cost of energy factors and shorten the ROI time.
